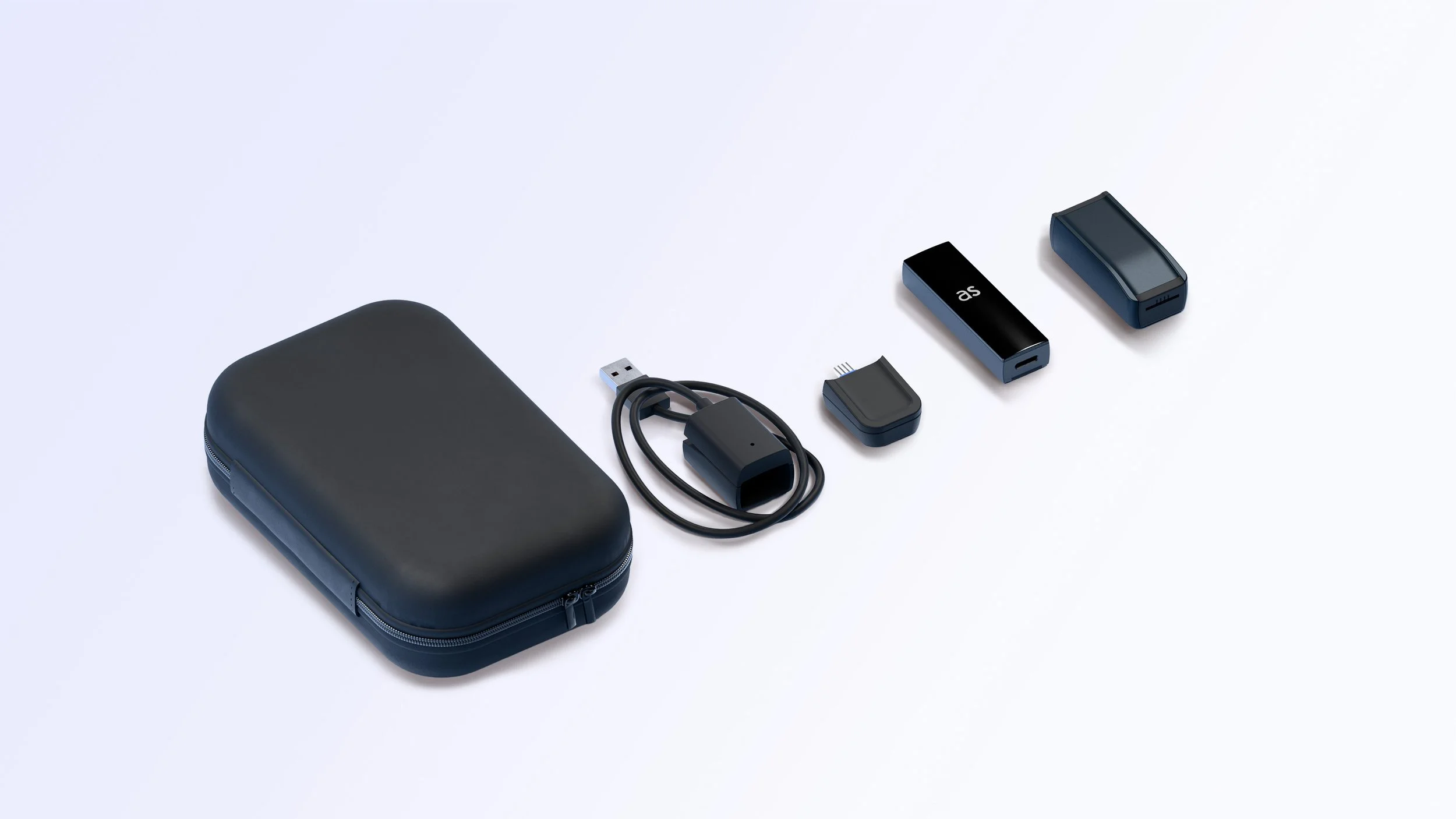

The Amulet
Amulet Scientific has developed a next-generation, handheld potentiostat designed for portability, precision, and accessibility across research, industrial, and field applications.
Its compact, modular design unlocks new possibilities for developing low-cost diagnostics, sensors, and wearable devices, empowering scientists and engineers to test, iterate, and deploy solutions faster than ever before.
*The Amulet features:
-
Lightweight, battery-powered, and easy to deploy anywhere.
-
With progress bar and error messaging for standalone operation.
-
For storing test data without requiring a connected device.
-

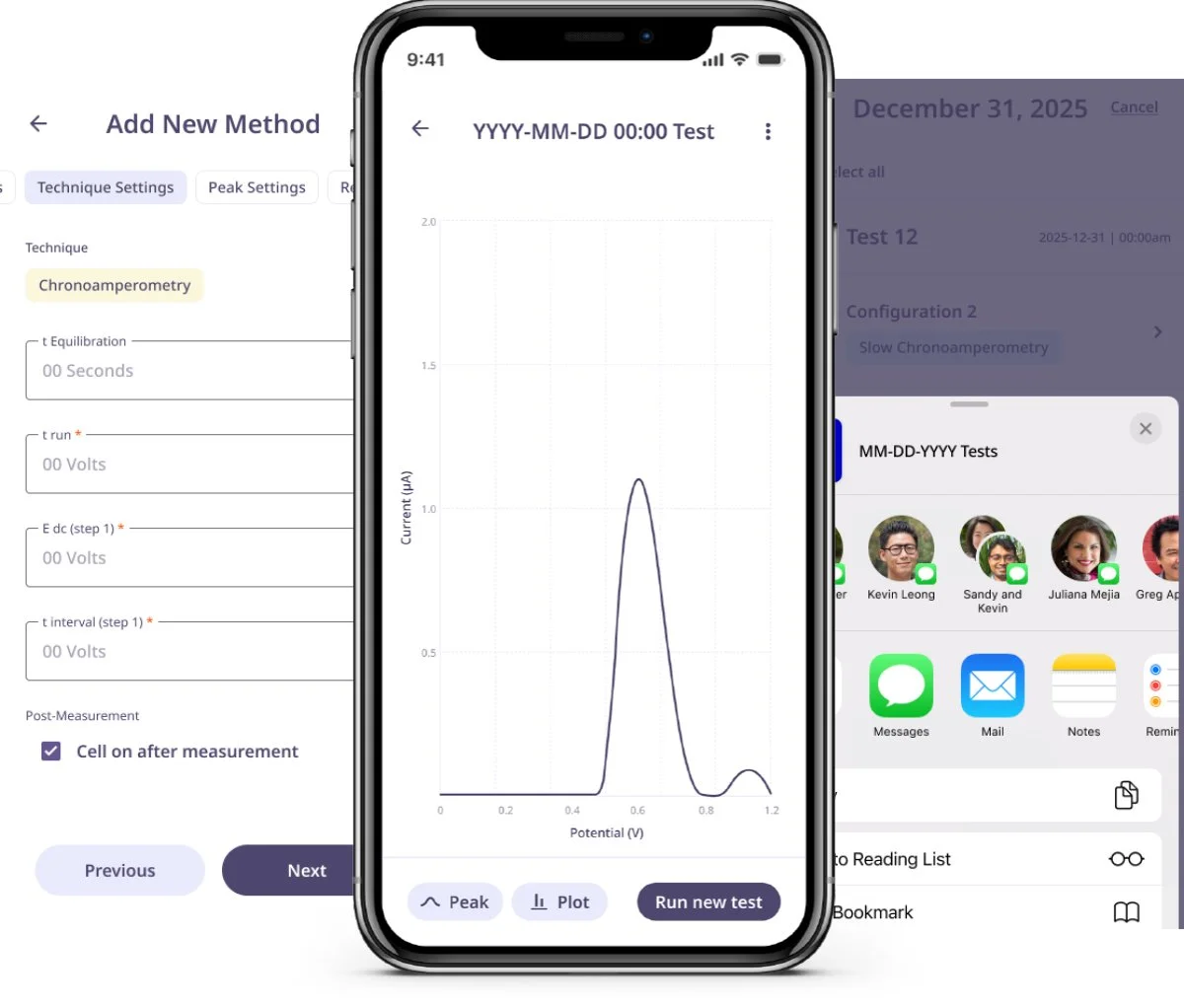

For seamless data transfer and mobile app integration.
-
Engineered for on-site detection, education, and rapid prototyping.
Technical Specs
-
Users can select one of four predefined potential ranges (E window) for their electrochemical experiment.
E window: 0 to +1.0 V
E window: -1.0 to +1.0 V
E window: -1.0 to 0 V
E window: -1.5 to +1.5 V
-
E window 0 to 1 volts: 1.0 V
E window -1 to 1 volts: 2.0 V
E window -1 to 0 volts: 1.0 V
E window -1.5 to 1.5 volts: 3.0 V
*The dynamic range is the range that can be measured in a single scan within the full potential range. A scan may begin at -1.2 V and end at 1.5 V, or the reverse, encompassing a dynamic range of 2.7 V.
-
E window 0 to 1 volts: 2.0 V
E window -1 to 1 volts: -2.0 to +1.0 V
E window -1 to 0 volts: -2.0 V
E window -1.5 to 1.5 volts: -1.5 to +1.5 V
**The compliance voltage is the maximum voltage the Amulet can apply to the CE to maintain the desired voltage at the WE, and varies based on the analog setup.
-
+/- 30μA (max +/- 300 μA)
-
500 datapoints/s
-
0.03% (15 nA on 60 µA range)
